CASTING

Fully – finished castings that comply with highest quality standards

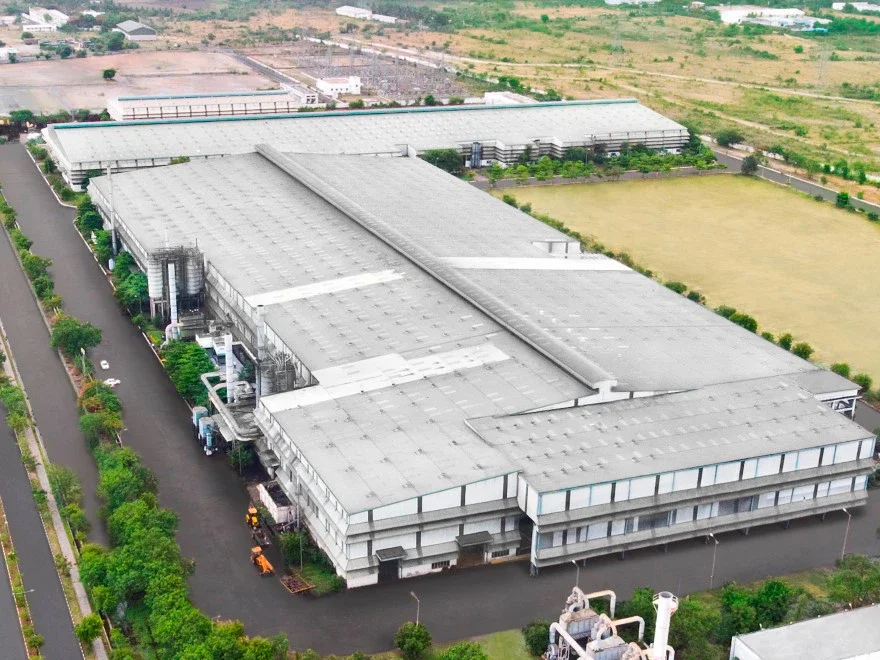

One of the biggest, fully – integrated foundries in India with its own machining and testing facility, we manufacture fully – finished castings from small to very big sizes.

Foundry Highlights:

Weight range:

2-25 Tans

Material used:

Ductile iron/grey (All grades)

Pouring capacity:

Up to 80,000 MT/annum

Machining capacity:

Up to 45,000 MT/annum

Virtual tour of our casting process

Tooling and pattern making
Manufacturing of the tooling for producing the final component
Mould preparation
Packing of moulding sand around the pattern within a moulding box
Melting
Raw materials are melted in specified ratios and compositions
Pouring
The molten metal is transferred into the prepared mould for solidification
Cooling and knock-out
Castings allowed to cool to 300°c and removed from the mould
Shot blasting and fettling
Castings are cleaned of unwanted fins and risers
Inspection
Visual inspection, NDT, MPI, UT & dimension inspection is carried out
Machining
Accepted castings are delivered to machine shop
Previous slide
Next slide

Machining for casting

Machining shop
Drilling
Fettling
Inspection
Previous slide
Next slide

Quality testing

100% in-house testing facility to ensure highest quality
We adhere to world class quality compliance at every stage of our manufacturing process to deliver high-precision products consistently.
  • Raw material inspection
  • Pattern inspection
  • Sand inspection
  • Mould/core inspection
  • Liquid metal inspection
  • Magnesium treatment
  • Pre – fettling inspection
  • Metallurgical inspection
  • NDT – UT/MP/DP

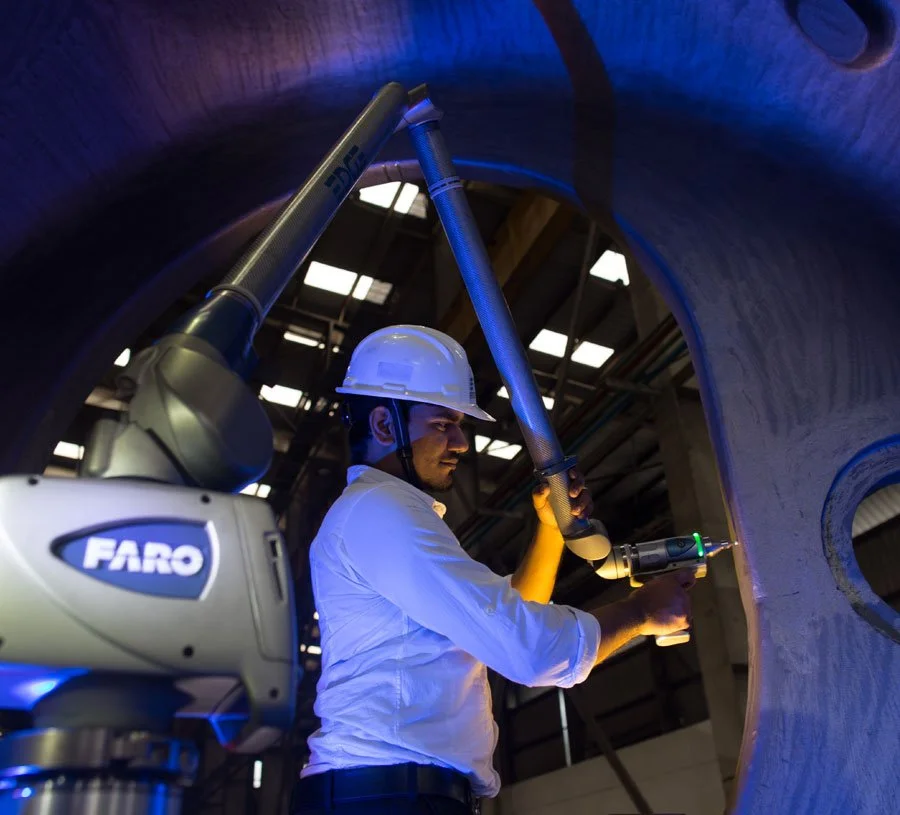

  • Faro inspection
  • Process inspection – CNC
  • Machine faro inspection
  • Coating inspection
  • Final inspection
